Case Study: Fit vs Crop for Exact Image Dimensions

Translate the form's wording into the right rule

Use fit when 600×600 means the image must stay within those maximum boundaries. The entire source remains visible and its aspect ratio is preserved, so a 3:2 landscape source becomes 600×400 rather than a stretched square.

Use crop only when the destination requires exactly 600×600 pixels. PixelConvert scales the image to cover the square and takes a centered crop. It does not distort the source, but content outside the square is removed.

The wording in the form is the evidence you have to work from, and it is often imprecise. 'Maximum 600×600', 'up to 600×600', and 'no larger than 600×600' all mean fit. 'Must be 600×600', 'exactly 600×600', and a form showing a square preview frame all mean crop. 'Recommended 600×600' usually means fit, since a recommendation is not a constraint.

When the wording is genuinely ambiguous, fit is the safer guess. A fitted image that is smaller than the stated box is usually accepted; a cropped image that has lost necessary content is a substantive error that may not be noticed until it matters.

Measured results from the production endpoint

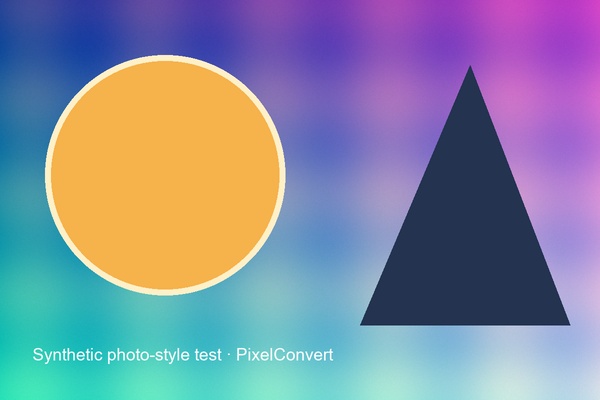

The source was a copyright-safe 1200×800 optimized PNG measuring 826,866 bytes. Fit mode returned a 600×400 JPEG measuring 38,620 bytes. Crop mode returned an exact 600×600 JPEG measuring 54,468 bytes. Both requests used JPEG quality 95 and completed without warning codes.

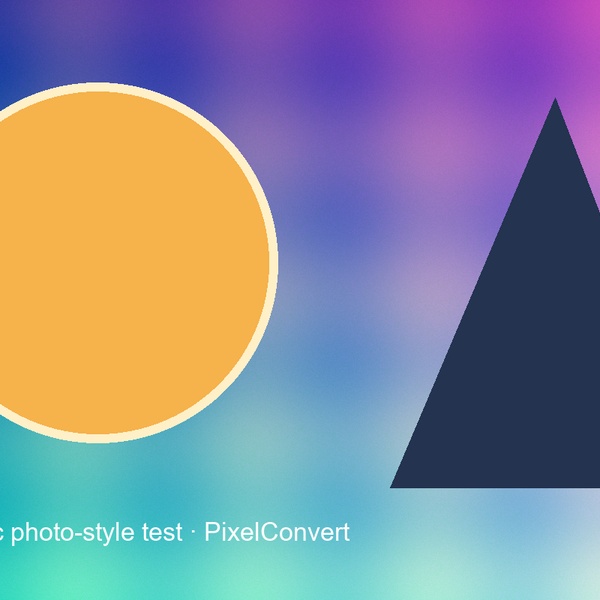

For the square result, the source's central 800×800 region was retained before resizing. That removed 200 source pixels from each horizontal side, or one third of the original width in total. The cut-off circle, triangle, and caption in the downloadable output make that loss easy to inspect.

Only one parameter differed between the two requests. Same source file, same target format, same width and height, same quality — the single change was the dimension mode. That isolation is what makes the comparison meaningful: every difference in the outputs is attributable to the mode, not to some other setting drifting between runs.

Note also what did not happen. Neither request produced a distorted image. A naive implementation asked for 600×600 from a 3:2 source might stretch the pixels to fill the square, which satisfies the dimension rule and ruins the photograph. Both modes here preserve the aspect ratio of whatever content they keep.

The arithmetic of a centred crop

Knowing how the crop is calculated lets you predict what will be lost before you run it, which is more useful than inspecting the result afterwards.

The operation scales the source so that it covers the target box entirely, then cuts away the overflow equally from both sides of the longer axis. For a 1200×800 source and a 600×600 target, the limiting dimension is the height: the image must keep all 800 pixels of height to fill a square, so the square side is 800 source pixels. The source is 1200 wide, so 1200 minus 800 leaves 400 pixels of overflow, split evenly as 200 from the left and 200 from the right. The resulting 800×800 region is then scaled to 600×600.

The general rule: for a landscape source going to a square, you keep a centred region as wide as the image is tall, and lose the rest. For a portrait source going to a square, you keep a centred region as tall as the image is wide. The more elongated the source, the more is lost — a panorama cropped to a square loses most of itself.

You can compute the loss before converting. Divide the shorter source dimension by the longer one; that fraction is roughly how much of the long axis survives. For 800 divided by 1200, two thirds of the width survives and a third is discarded.

Choose based on content, not file size alone

The cropped output is larger because it contains 50% more output pixels than the fitted 600×400 copy. That byte difference is not a quality score. It reflects a different canvas and different visible content produced from the same source and encoder setting.

If a form accepts any image up to 600×600, fit is the safer default. If it requires a square avatar or product tile, crop can satisfy the dimensions, but inspect the subject placement before submission. PixelConvert currently uses a centered crop; it does not detect faces or choose a subject-aware crop.

The cases where a centred crop causes real damage are predictable. Group photographs lose the people at the edges. Documents and identification cards lose their borders, which is frequently where required information sits. Product photographs with the item deliberately off-centre lose part of the item. Landscape compositions arranged along the rule of thirds lose the subject entirely if it sits a third of the way in.

For all of those, crop the image manually first so the content you need is centred, then request the exact dimensions. The tool will then cut away margin rather than subject.

What fit mode will not do

Fit mode preserves the aspect ratio, which means it will not produce an exact square from a non-square source. Our request for 600×600 returned 600×400, and that is the correct answer to 'stay within these bounds while keeping the whole image', not a failure.

It also does not pad. Some workflows want an exact square canvas with the image letterboxed inside it on a background colour — common for product listings that require uniform tiles. That is a third operation, distinct from both fit and crop, and PixelConvert does not currently perform it. If a destination requires exact dimensions and you cannot afford to lose content, padding in an image editor before converting is the route.

And it does not enlarge. If your source is smaller than the requested bounds, fit mode leaves it alone rather than upscaling to fill the box. Upscaling adds interpolated pixels rather than detail, so declining to do it is the honest behavior, but it means a small source will produce a small output.

A decision procedure

Read the requirement and classify it: maximum bounds, or exact canvas? If maximum bounds, use fit and you are finished. If exact canvas, continue.

Compute what a centred crop will discard using the arithmetic above. If the loss is only margin, use crop. If the loss would include content that matters, crop the source manually so the important region is centred, then use crop mode on the result — or pad the source to the target aspect ratio in an editor if nothing can be lost at all.

Then verify the output by opening it. Check the dimensions match what you expected, and check the framing with your own eyes. The dimensions are the part a tool can guarantee; whether the right thing is in the frame is the part it cannot.
